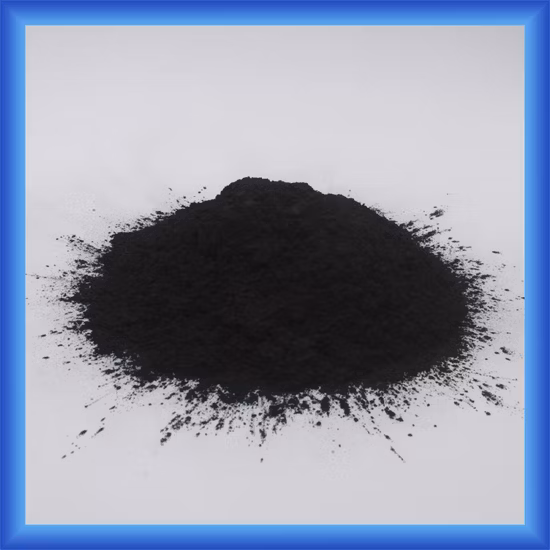

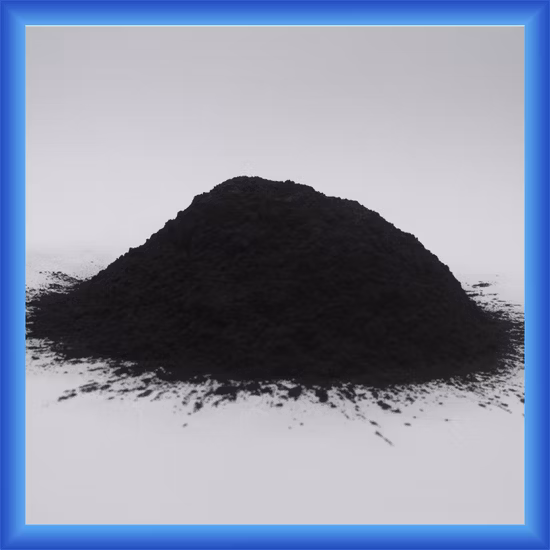

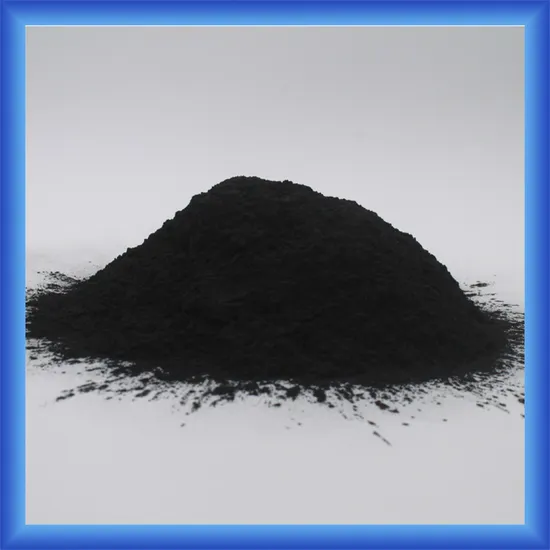

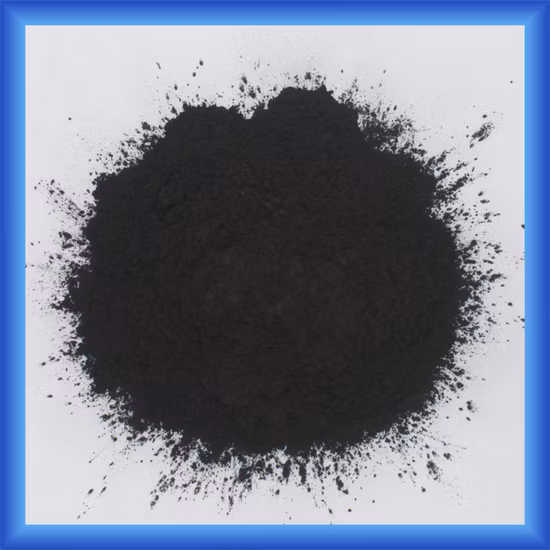

100mesh Pan Carbon Fiber Powder for PLA 3D Printing
100mesh Pan Carbon Fiber Powder for PLA 3D Printing100 mesh PAN carbon fiber powder was made from high modulus high stre
Basic Info
Model NO. | XGCP-100 |
Shape | Carbon Fiber Powder |
Raw Materials | Polyacrylonitrile-Based Carbon Fiber |
Performance | High-Strength Type |
State | Chopped Fiber |
Mechanical Property | High-Performance Type |
Model | Xgcp-100 |
Density | 1.76g/cm3 |
Carbon Content | >99% |
Diameter | 7micron |
Mesh | 100 |
Aspect Ratio | 21.4:1 |
Average Fiber Length | 150 |
Tensile Strength | 3600MPa-3850MPa |
Young′s Modulus | 220gpa-235gpa |
Resistivity Micron Ohm Meter | 14 |
Transport Package | 10kg Carton |
Specification | ROHS |
Trademark | XIANGU |
Origin | Guangdong |
HS Code | 6815993991 |
Production Capacity | 50000kg |
Product Description
100mesh Pan Carbon Fiber Powder for PLA 3D Printing100 mesh PAN carbon fiber powder was made from high modulus high strength carbon fiber chopped strands,after grinding, microscopic separating, screening,high temperature drying.It retains many of the excellent performance of carbon fiber,small particle size,clean surface,large surface area,dispersed uniformly with resin,is excellent reinforcing filler of composite products.It can be compound with resin,plastic,rubber and other materials to increase its strength and wear resistance.Widely used in many fields,such as electronic chips,conductive plate,conductive flooring,electrical machinery, anti-static industry,defense industry,building insulation,friction materials and chemical.SPECIFICATIONS:
Model: | XGCP-100 |
Density(g/cm3): | 1.76 |
Carbon content: | >99% |
Diameter (μm): | 7.0 |
Mesh: | 100 |
Aspect ratio: | 21.4:1 |
Average Fiber length(μm): | 150 |
Tensile strength(MPa): | 3600-3850 |
Young's modulus(GPa): | 220-235 |
Resistivity micron ohm meter: | 14 |
APPLICATION FIELDS:1.Reinforced rubber,modified plastics and resin: Polypropylene (PP),nylon (PA),polycarbonate resin (PC),phenol resin (PF),polytetrafluoroethylene resin (PTFE),polyimide resins (PI ),epoxy resin, silicone rubber, polyvinyl alcohol, unsaturated polyester resin;2.Construction industry: carbon fiber reinforced cement, conductive coatings, anti-static floors;3.Shielding materials: Manufacturing shield smoke, shielding curtain wall;4.Insulation materials: carbon fiber reinforced preform and refractory bricks, carbon-fiber reinforced ceramic, etc;5.New energy: used as conductive additives of positive or negative materials in nickel hydride and nickel cadmium battery;6.Anti-static industry: coating, flooring, paint, ink, anti-static filter,7.Aerospace: composite materials for parts of aircraft and satellite.8.Civilian areas: sports equipment, transportation, sanitary equipment, kitchen appliances.
STORAGE:The 100mesh PAN carbon fiber powder should be keep dry in their original bags and stored in a suitable place,preferably at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.
PACKAGING:
SHIPMENT AND TRANSPORTATION:1.Shipment by sea:for sea transportation,generally 20pallets(each 800kg.two layers)be loaded into 20 feet container.total net weight is 16.00 metric tons.2.transportation by truck:for truck transportation,generally 10 pallets(each 800kg,one layer) be loaded into truck.3.transportation by rail:for rail transportation,generally 20 pallets(each 800kg,two layer)be loaded into train's container.PRODUCT DETAIL IMAGES:
